Roll Track Sliding Doors

See what is in-stock in our Round Track, Square Track, and Flat Track Sliding Door catalog: Roll Track Sliding Doors.

Round Track

TCB*

Keyhole Track

Keyhole track offers versatility, strength and ease of use. This adaptable track style can be used with any sliding door variety or bracket type – and installs with a simple connection of brackets into keyholes before mounting.

• Keyhole Track is commonly used in both wood and metal frame construction.
• Can manage sliding doors weighing up to 600 lbs.
• Accommodates track cover additions on doors up to 2-1/2” thick with various bracket options.
• The round design has the advantage of being self-cleaning and giving smoother opperation.

Stocked Sizes: 8′ – 20′ lengths (every even foot) in 14 guage steel.

Trolleys

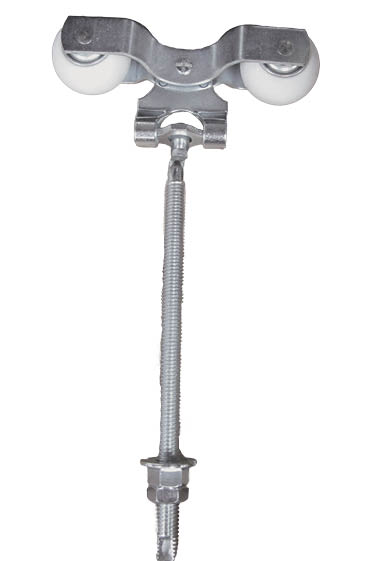

T5302*

Pendant Bolt Trolleys

The Pendant Bolt installs through the top of the horizontal, allowing for easy adjustment and a perfect fit. For maximum flexibility, the offset bolt version offers four directions of adjustment: up, down, in and out.

Stocked Sizes: 6-1/2″ 4-way adjustable pendant and 9″ straight pendant.

TTTR

Double Truck Trolleys

Built to handle the heaviest sliding door panels, Double Truck Trolleys are the perfect choice for steel frame doors on Heavy Duty Tubular Track with Universal Bracketry.

• The product design features four wheels per trolley, allowing it to support door weights up to 1200 pounds. Brackets spaced every 12” on center.
• An optional plate sits just below the top girt, preventing the bolt hole from distorting.

Stocked Sizes: 9″

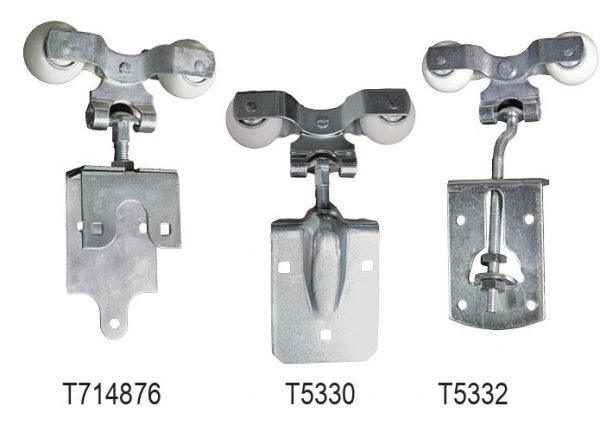

Strap Trolleys

Strap Trolleys attach to the front face of wood panel doors, with bolts that go through the panel for a solid hold.

T714876 – Derlin Trolley With Front & Back Strap
T5330 – Strap Trolleys for Round Track – Top Adjustable
T5332 – Side Bolt Trolley for Round Track

Brackets

Face Mount Brackets

Designed for use on CannonBall’s Keyhole Track line, Face Mount Brackets contain an integral rivet that interlocks into the keyhole slot. Simply tap the bracket into each slot and mount to the face of the header board.

• The simple assembly provides an easy way to install the track on your building project.

TTC – Track and Cover Bracket
TFB – Face Mount Bracket (not compatible with cover)

TCBSBD

Universal Double Bracket

The Universal Double Bracket – an ideal choice for double track runs – allows two lengths of Heavy Duty or Keyhole track to be installed in parallel for bypass sliding doors.

• Like the Universal Side Bracket, the Universal Double supports doors with weights over 600 pounds.
• Highly recommended for bypass sliding door configurations.
• The versatile design of the bracket allows for use as an end bracket, intermediate bracket or splice collar – depending on your building project’s needs.

Universal Bolt Bracket & Adapters

Created to bridge post frame components into metal building projects, the Universal Bolt
Bracket allows builders to convert Keyhole Track into Bolt Hung Track functionality.

TCBBHB – Bolt Hung Bracket 1/2” Bolt Welded to Loop Bracket
TSB – Stud Bolts for Triangle Brackets with 2-3/8” Flat Washer
TTB – Triangle Bracket with 2 Stud Bolts
T5151FLASH – Double Flashing Brackets

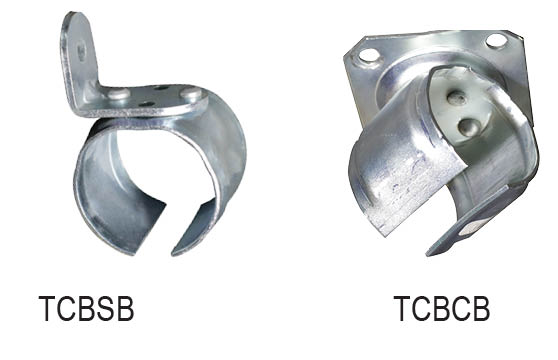

Universal Brackets

Designed for use on heavy weight sliding door projects utilizing Keyhole Track varieties, Universal Side Brackets and Universal Ceiling Brackets mount easily.

• Universal Ceiling Brackets can be utilized to mount directly to a ceiling beam or truss for added flexibility in tight spaces with limited head room.
• The versatile design of these brackets allows for use as end brackets, intermediate brackets, or splice collars.
• Both Universal Brackets support sliding doors with weights over 600 pounds (when used in conjunction with appropriate Heavy Duty Track and spaced every foot on center).

TCBSB – Side Bracket – Not Keyhole
TCBCB – Ceiling Bracket – Not Keyhole

Splice Collar

TCBS

Splice Collar

Connects track lengths together to make a single, elongated track. NOTE: Shorter track lengths utilizing Splice Collars save on shipping and install easier than long track lengths.

End Caps

TEC

End Cap with Bolt

Attaches to open ends of the track, preventing birds from nesting as well as dirt and debris build-up. NOTE: End Caps cannot be used as door stops.

TCBET

End Trim for Track Cover

Attaches to open ends of the track, preventing birds from nesting as well as dirt and debris build-up. NOTE: End Caps cannot be used as door stops.

Available in white.

Door Stops

TADJ*

Adjustable Door Stop

Prevents door panels from opening or closing further than a predefined stopping point.

Available in white and unpainted galvanized.

TDS

Non-Adjustable Door Stop

Prevents door panels from opening or closing further than a predefined stopping point.

Only available in galvanized.

TJMS

Jamb Mount Door Stop

Adjustable door stop that mounts to the door jamb.

Only available in galvanized.

Snugger

TCS

Chain Snugger

Prevents door panels from moving or rattling when closed and tightens as the door moves; available in several styles based on intended use.

Latches

TJL

Adjustable Jamb Latch

Locks doors from the inside and pulls panels tighter against the building to reduce rattle.

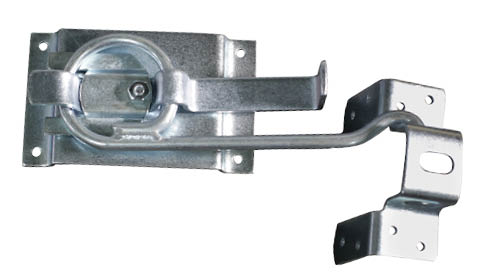

TCL

Cam Latch

Locks doors from the inside and pulls panels tighter against the building to reduce rattle.

TJLOS

Locking Jamb Latch

Can be locked with a pad lock.

Door Pull

TPW or TPG

Door Pull

Assists with the door opening and closing; a handle attached to door panels.

Door Guides

TDGScc

Adjustable Door Guide/Stop

Guides the door along the building, reduces the amount of door sway and prevents opening or closing beyond a predefined stopping point.

Stocked in white and unpainted galvanized.

T322

Floor Mount Door Guide/Stop

Sold in a pair for front and back.

Center Door Guide

TCDG – Center Guide
TCDGB – Big Center Guide

Stay Rollers

TSMS

Small Stay Roller

TLGS

Adjustable Large Stay Roller

N131524

Stay Roller with Lag and Sheild

Bottom Rails

TBRG*

Bottom Rail for Guide

Available in white.

Stocked Sizes: 8′, 10′, 12′, 14′, 16′, and 20′

TBRGB*

395 Big Bottom Rail

Available in white.

Stocked Sizes: 10′, 12′, 14′, 16′, 18′, and 20′

TBR*

201 Bottom Rail

Available in white.

Stocked Sizes: 8′, 10′, 12′, 14′, 16′, and 20′

Door Seals

TWSSR

Vinyl Weather Strip for Side Rails

TWSSR

Vinyl Weather Strip for #244 Bottom Rails

TBS

Black Brush Seal Strip for #244 Bottom Rails

Side Rails

TSRB*

391 Big Side Rail

Accomotdates a 3-1/2″ wood insert.

Stocked Sizes: 12′, 14′, 16′, and 20′

TSR*

Side Rail

Multiple color options in stock with many more available for special order with extra lead times.

Stocked Sizes: 8′, 10′, 12′, 14′, 16′, and 20′

TCR*

Side Connector Rail

Multiple color options in stock with many more available for special order with extra lead times.

Stocked Sizes: 8′, 10′, 12′, 14′, 16′, and 20′

TCRB*

Big Side Connector Rail

Accomotdates a 3-1/2″ wood insert.

Stocked Sizes: 12′, 14′, 16′, and 20′

AB Martin is a Manufacturer and Supplier of Quality Building Supplies. Contact us to speak to one of our knowledgeable sales representatives.

* = Size
cc = Color Code
